FC SWATH 75
75m ultimate italian luxury ultra-tech fuel-cell yacht
Andrea Vallicelli
Designer
New clients with new needs in a new world. In response to this challenge, the engineering team at Fincantieri Yachts and our Design Team have developed and combined advanced technologies in an innovative luxury-vessel concept, in a completely green configuration.

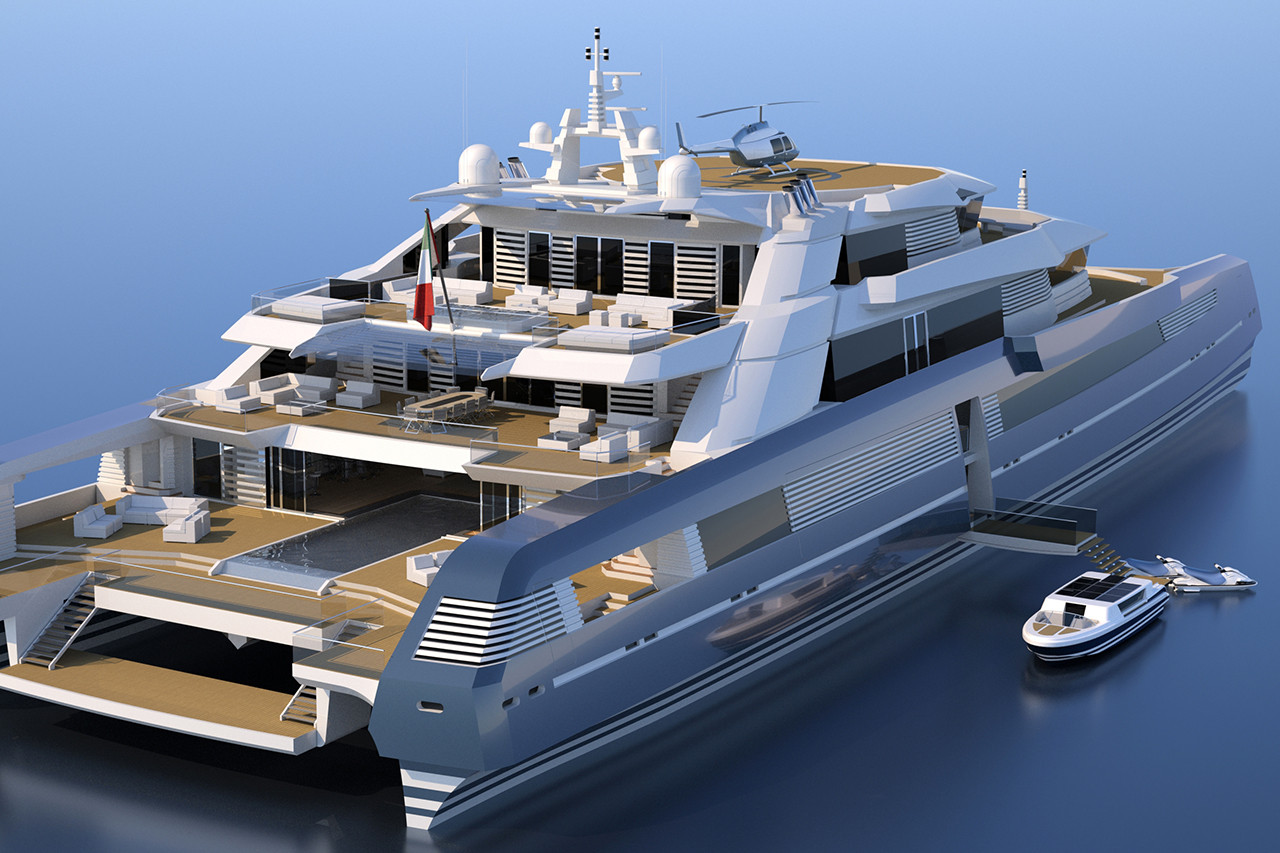

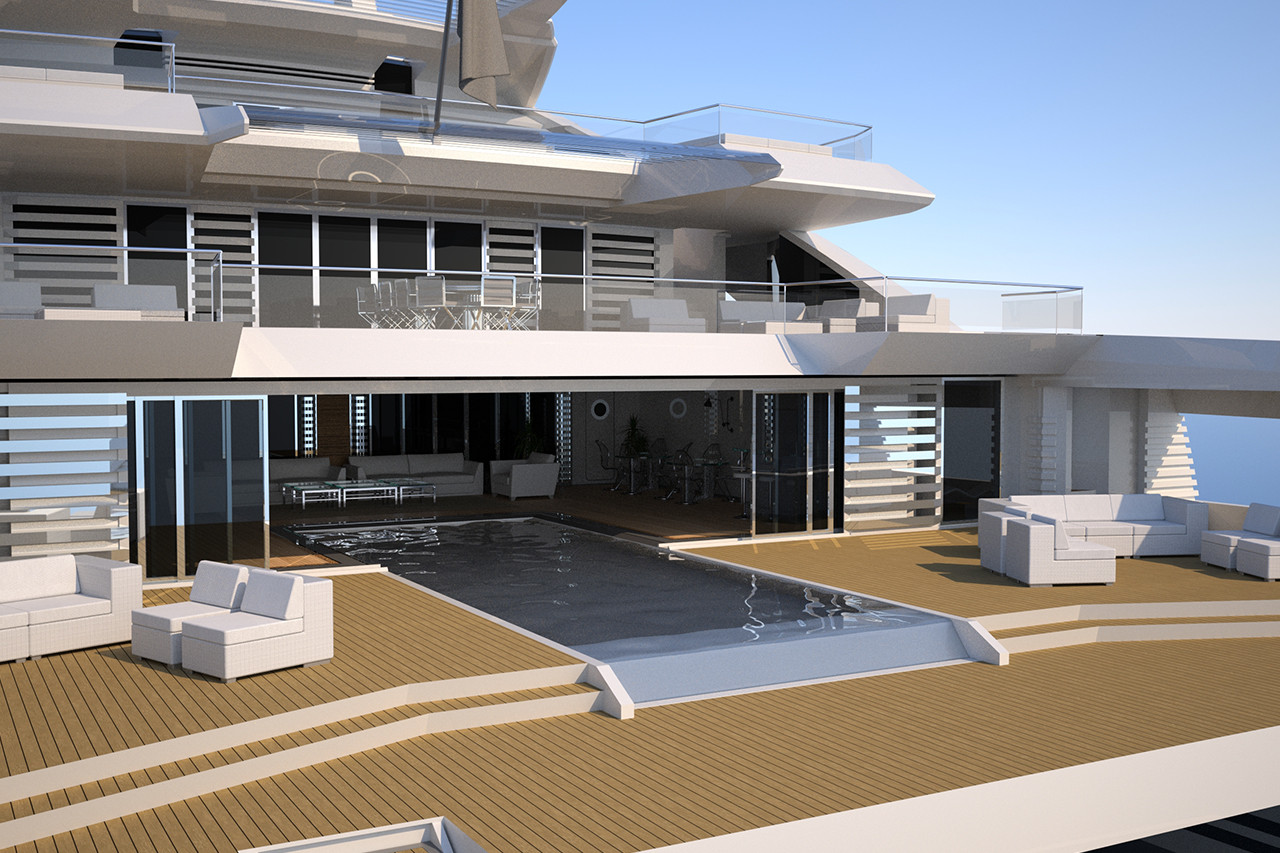

The new FC SWATH 75 not only has memorable aesthetics, but she will also give owners unprecedented cruising and berthing comfort, with her inherent stability, and minimum noise and vibrations even over long voyages with the chance to savour a lifestyle of utmost luxury on board, courtesy of her large beach area and wide public areas.
Thanks to the fuel-cell propulsion system, FC SWATH 75 will have zero-emission capability, to sail in ECA areas in a fully green configuration – an approach aimed at highly demanding-future oriented owners.
| Length Overall | 75 m |
| Max Beam | 24 m |
| Half-load draught | 5.5 m |
| Gross tonnage | abt. 3,400 GRT |
| Owner and Guests | 12 |
| Captain and Crew | 24 |
| Hull material | Aluminium alloy |
| Max speed | abt. 18.0 kn |
| Range @ abt. 6 kn on hydrogen | abt. 450 nm |
| Range @ abt. 12 kn on diesel | abt. 4,000 nm |
| Mechanical propulsion | 2 x MM/EE, abt. 2,500 kW each coupled to FPP shaft lines |
| Electric propulsion power | 2 Motor/generators, abt. 300 kW each |
| Electricity generation | 2 x DD/GG abt. 450 kW each |
| Auxiliary generation | 2 x Fuel cells abt. 250 kWe each |
